MySing® O Oxygen Monitor Kit
High-performance hand-held monitor for clinical, emergency and home ventilation environments.
The MySign© O is the ideal companion for patient care and monitoring. It is compact, lightweight and extremely easy to use. Offering the high precision required for anaesthesia and neonatal applications along with a sturdy design suitable for paramedics and pre-hospital applications.
The MySign© O provides immediate access to patients’ oxygen concentration parameters, therefore offering safety, even in critical situations.
With the use of the universal mounting clamp (supplied separately) it provides fast mounting, fitting any shape of rail.
Envitec MySign O Oxygen Monitor with coiled sensor cable and PSU.
Contains;
1 x 0111276 MySign O unit
1 x 0121352 Power supply
1 x 0110560 OOM111 sensor (included in MySign O)
DOWNLOADS - Technical specifications
FEATURES

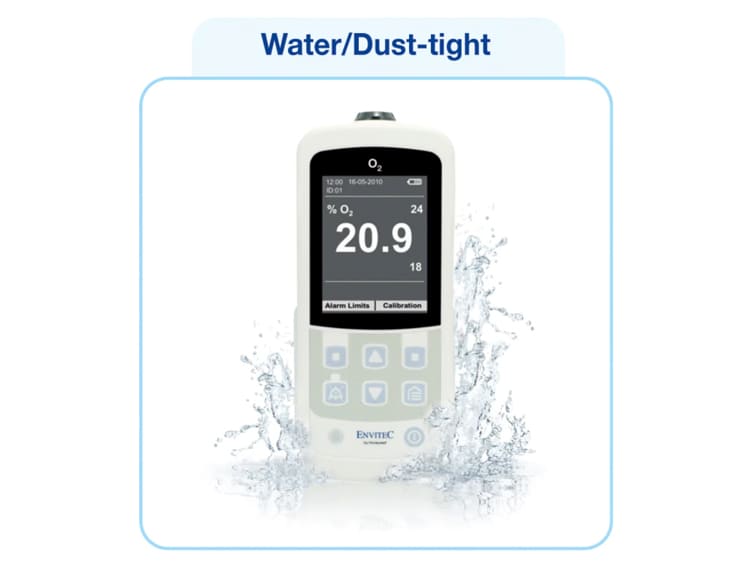

- Water and dust resistant

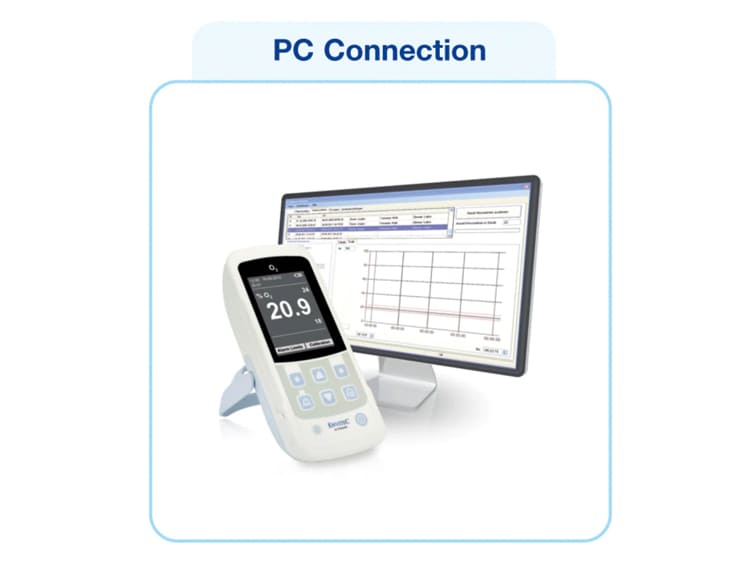

- Computer connection

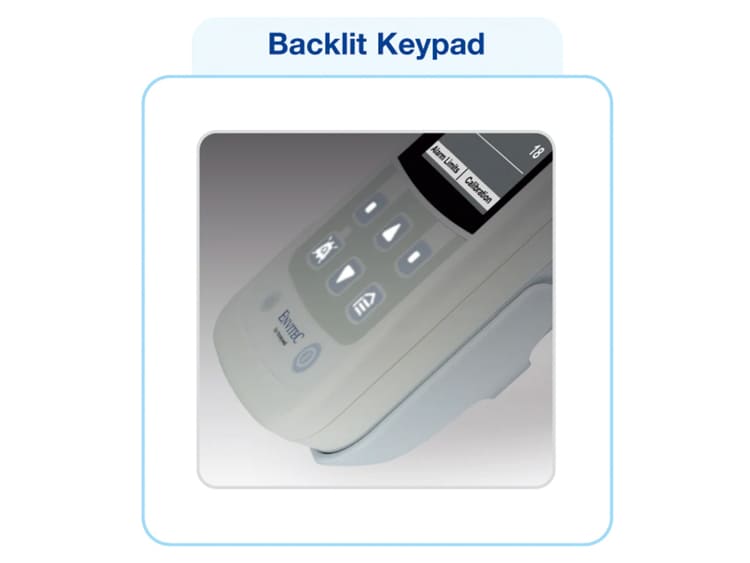

- Backlit keyboard

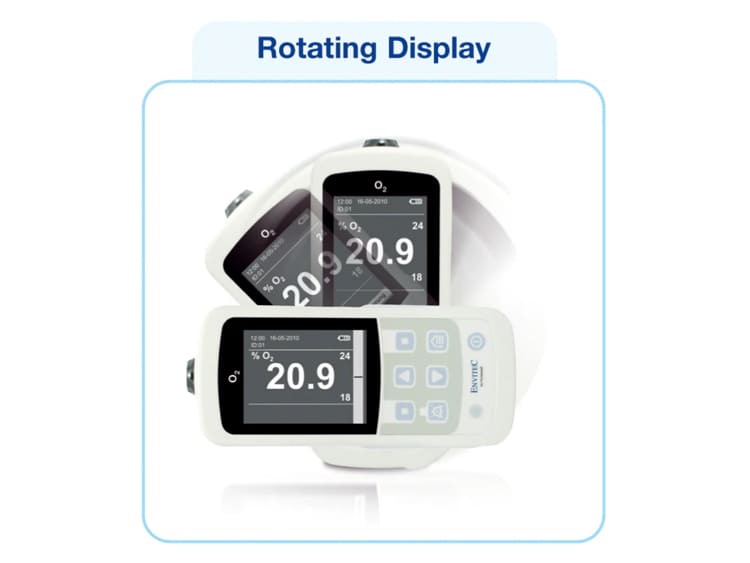

- Rotatable display
- Ideal for clinical and emergency environments
- Compact, lightweight and very easy to use.
- Simple calibration
- Intuitive operation with self-explanatory icons
- Comprehensive data and alarm management
- Spot check and continuous monitoring modes
- Durable and hygienic design
- Maintenance-free
DESIGN SPECIFICATIONS
SPECIFICATIONS | MySing O | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Display accuracy | 0.1% oxygen | ||||||||||||
Weight | 330 g | ||||||||||||
Protection class | IP54 | ||||||||||||
Battery | Li-ion 3.6 V 2900 mAh | ||||||||||||
Dimensions (device) | 160 mm (H) x 72 mm (W) x 39 mm (D) | ||||||||||||
Ambient pressure | 750 a 1250 hPa | ||||||||||||
Measuring range | 0 - 100% Oxygen | ||||||||||||
Offset | < 1% vol. O2 in 100% N2 | ||||||||||||
Response time: | 90% of final value in < 12 sec. | ||||||||||||
Operating temperature | 0-50º C |
REFERENCES
DESCRIPTION | PART NUMBER | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VANDAGRAPH OXYGEN MONITORING | |||||||||||||||||||
MySign O Oxygen Monitor Kit | VG-0111277 |
