Why Mistral
MISTRAL is Paramina’s “petit’’ mobile high pressure piston compressor. The unit is 3-staged, air cooled and easy to transport due to the built-in wheels.
MISTRAL provides a reliable source of breathing air due to the unique purification system (a coalescing prefilter installed before the active carbon/molecular sieve cartridge – hopcalite as an option). It is suitable for private divers, small diving shops, diving boats, yachts and small paintball teams
MISTRAL’s very low turning speed accomplishes low noise level, almost zero vibration and ensures long life operation.
All Mistral M6 models provide the lowest speed rotation of the market, @1200rpm

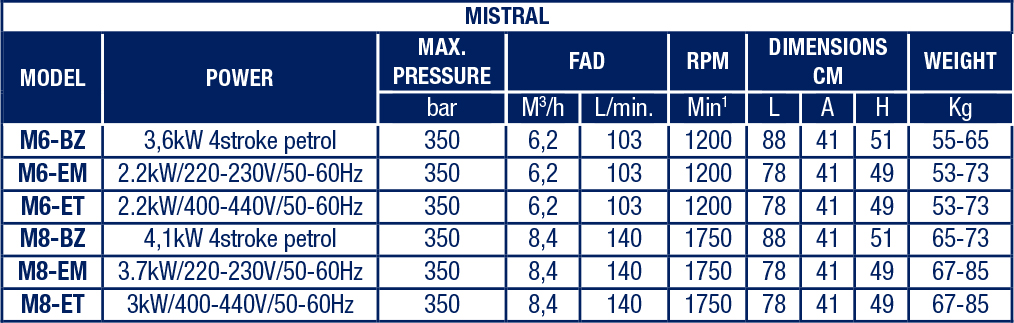

TECHNICAL DATA
DESIGN SPECIFICATIONS
DESIGN SPECIFICATIONS MISTRAL SERIES | M6-EM, M8-EMM6-ET, M8-ET | M6-BZ, M8-BZ | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Start/Stop switch | ● | ■ | |||||||||||||||||||||||
Micronic air inlet filter | ● | ● | |||||||||||||||||||||||
Pressure maintaining and non return valve for extended filtration | ● | ● | |||||||||||||||||||||||
Condensate Separator after 2nd Stage | ● | ● | |||||||||||||||||||||||
Combined BA Filter including Coalescing Pre-filter (0.5 mg/m3 oil residual) and B.A. cartridge (AC/MS + HP option), with the supply of absolutely clean air exceeding by far the requirements of EN12021 | ● | ● | |||||||||||||||||||||||
Safety Bleed valve in case of BA Cartridge absence | ◆ | ◆ | |||||||||||||||||||||||
Large Stainless Steel Intercoolers – Aftercooler | ● | ● | |||||||||||||||||||||||
Safety Valves in all stages | ● | ● | |||||||||||||||||||||||
Kevlar filling hose (1.2m) with stainless steel fittings and DIN/INT’L connector | ● | ● | |||||||||||||||||||||||
Electric hourmeter | ● | ■ | |||||||||||||||||||||||
Vibration hourmeter/service timer (Running hours, BA filter/oil service hours) | ◆ | ● | |||||||||||||||||||||||
Final stage Manometer | ● | ● | |||||||||||||||||||||||
Manual condensate drains | ● | ● | |||||||||||||||||||||||
Motor thermal overload protection | ● | ■ | |||||||||||||||||||||||
Automatic belt tensioning system | ● | ● | |||||||||||||||||||||||
Automatic stop system | ◆ | ◆ | |||||||||||||||||||||||
Automatic start system | ◆ | ■ | |||||||||||||||||||||||
Automatic condensate drains with manual backups | ◆ | ■ | |||||||||||||||||||||||
Dual pressure filling facility, allowing 225/330 bar alternative filling | ◆ | ◆ | |||||||||||||||||||||||
Condensate collecting tank | ◆ | ■ | |||||||||||||||||||||||
1.5m air inlet hose with particle strainer | ◆ | ● | |||||||||||||||||||||||
Special voltage/frequency: 3 x 230 V/ 60 Hz – 110 V / 60 Hz | ● | ■ | |||||||||||||||||||||||
● STANDARD I ◆ OPTIONAL I ■ NOT APPLICABLE |
OPTIONS
- Automatic Stop (electric version)
- Automatic condensate Drains (electric version)
- Extra Filling Hose
- Dual pressure filling facility, allowing 225/330 bar filling
- Condensate collector vessel
