Why Notus
NOTUS, Paramina’s new ‘’Force’’ in high pressure piston compressor series. Heavy duty design for continuous operation during the day, easy-to-move, 3-staged, oil lubricated and air cooled, offering pure breathing air according to EN 12021. NOTUS is suitable for indoor or open area installations, mobile rescue squads, fire trucks, diving boats & paintball teams. Its robust construction makes it suitable for several industrial applications as well.
Notus Classic models provide fully automated versions as an “option

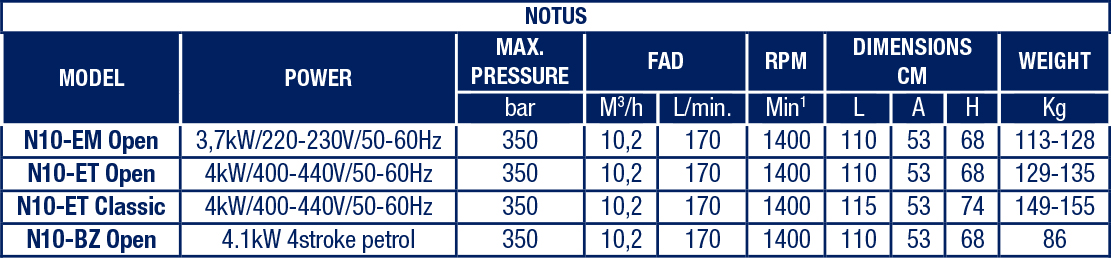

TECHNICAL DATA
DESIGN SPECIFICATIONS
DESIGN SPECIFICATIONS NOTUS HP SERIES | N10-EM Open | N10-ET Open | N10-ET Classic | N10-ET Open | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Micronic Air Inlet Filter | ● | ● | ● | ● | |||||||||||||||||||||
Condensate Separator after 2nd Stage | ● | ● | ● | ● | |||||||||||||||||||||
Large Stainless Steel Intercoolers – Aftercooler in all stages | ● | ● | ● | ● | |||||||||||||||||||||
Combined BA Filter including Coalescing Pre-filter (0.5mg/m3 oil residual) and 2 x BA cartridges (AC/MS + HP option), with the supply of absolutely clean air exceeding by far the requirements of EN 12021 | ● | ● | ● | ● | |||||||||||||||||||||
Safety Bleed valve in case of BA Cartridge absence | ◆ | ◆ | ◆ | ◆ | |||||||||||||||||||||
Pressure maintaining & non-return valve for extended filtration | ● | ● | ● | ● | |||||||||||||||||||||
Start/Stop switch | ● | ● | ● | ■ | |||||||||||||||||||||
Motor thermal overload protection | ● | ● | ● | ■ | |||||||||||||||||||||
Manual Condensate Drains | ● | ● | ● | ● | |||||||||||||||||||||
Kevlar filling hose (1.2m) with stainless steel fittings and DIN/INT’L connector | ● | ● | ● | ● | |||||||||||||||||||||
Handles for easy lifting | ● | ● | ■ | ● | |||||||||||||||||||||
Safety Valves in all stages | ● | ● | ● | ● | |||||||||||||||||||||
Final Stage manometer | ● | ● | ● | ● | |||||||||||||||||||||
Automatic belt tensioning system | ● | ● | ● | ● | |||||||||||||||||||||
Electric hourmeter | ● | ● | ● | ■ | |||||||||||||||||||||
Vibration hourmeter / service timer (Running hours, BA filter / oil service hours) | ◆ | ◆ | ◆ | ● | |||||||||||||||||||||
Automatic stop system | ◆ | ◆ | ◆ | ◆ | |||||||||||||||||||||
Automatic start system | ◆ | ◆ | ◆ | ■ | |||||||||||||||||||||
Automatic condensate drains with manual backups + Condensate collecting tank. | ◆ | ◆ | ◆ | ■ | |||||||||||||||||||||
Dual pressure filling facility, allowing 225/330bar alternative filling | ◆ | ◆ | ◆ | ◆ | |||||||||||||||||||||
Star/Delta starter system | ■ | ■ | ◆ | ■ | |||||||||||||||||||||
Low oil level monitoring / alarm / shutdown | ■ | ■ | ◆ | ■ | |||||||||||||||||||||
High temperature monitoring / alarm / shutdown | ■ | ■ | ◆ | ■ | |||||||||||||||||||||
24VAC secondary voltage providing safety during routine operation | ■ | ■ | ◆ | ■ | |||||||||||||||||||||
Emergency Stop button | ■ | ■ | ● | ■ | |||||||||||||||||||||
Main Switch | ■ | ■ | ● | ■ | |||||||||||||||||||||
Remote start/stop | ■ | ■ | ◆ | ■ | |||||||||||||||||||||
Condensate separator after 3rd (final) stage | ◆ | ◆ | ◆ | ◆ | |||||||||||||||||||||
Interstage manometers | ● | ● | ● | ● | |||||||||||||||||||||
1.5m air inlet hose with particle strainer | ◆ | ◆ | ◆ | ● | |||||||||||||||||||||
Special voltage/frequency 3x230V/60Hz * 460-480V/60Hz | ■ | ■ | ◆ | ■ | |||||||||||||||||||||
● STANDARD I ◆ OPTIONAL I ■ NOT APPLICABLE |
OPTIONS
- Automatic Stop
- Automatic Start
- Automatic condensate Drains
- Extra Filling Hose
- Dual pressure filling facility, allowing 225/330 bar filling
- Condensate collector vessel, external
- Interstage manometers (std on Classic version)
- 1,5m air inlet hose with particle strainer
- Start/Delta starter (only for Classic version)
- Low Oil level alarm (only for Classic version)
- High Temperature alarm (only for Classic version)
- 24VAC secondary voltage providing safety during routine operation (only for Classic version)
- Emergency stop button (only for Classic version)
- Main Switch (only for Classic version)
- Remote start/stop (only for Classic version)
- Condensate Separator after final (3rd) stage (only for Classic version)
