TYPHOON Electric
Choose from its 3 ranges:Electric, Diesel & Gasoline and Tropical
Why Typhoon Electric
TYPHOON Electric series, 3-staged, air-cooled, high pressure piston compressor, comprising of 8 basic models, with very low turning speed and pure breathing air according to EN 12021, making it a perfect solution for any breathing air, paintball or industrial application; i.e. fire rescue teams, military units, diving shops, paintball clubs and others.
The series consists of four versions:
- Open Framed Portable
- Classic Stationary
- Silent – With soundproof insulation enabling it to operate in areas where the noise level is of issue. Includes digital control panel driving, controlling, protecting and ensuring the safe operation of the compressor.
- Economy Versions-Without automations. Models: Open 13ES, Open 15ES, Silent 15ES, Silent 18ES.
All basic Typhoon Electric versions provide automatic stop & automatic condensate drain facility as standard equipment.

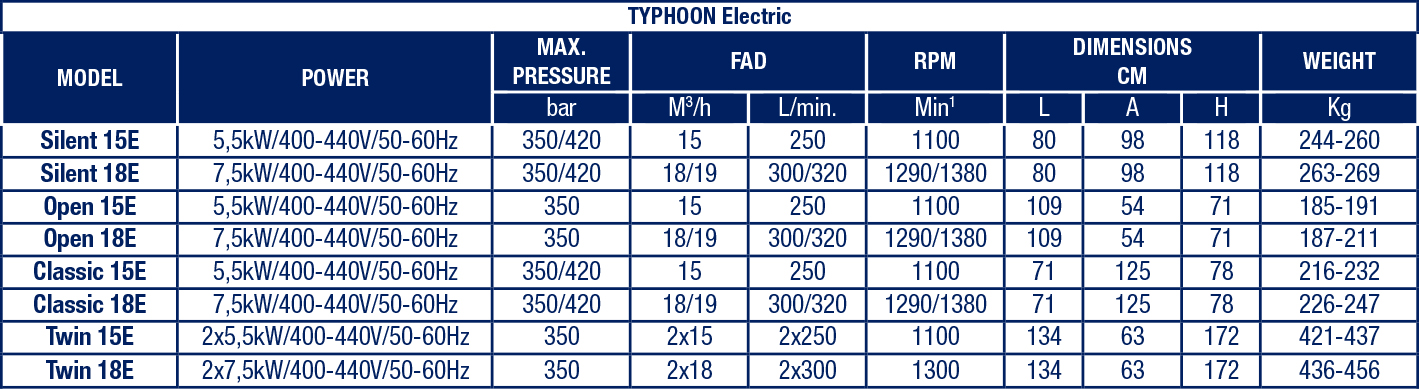

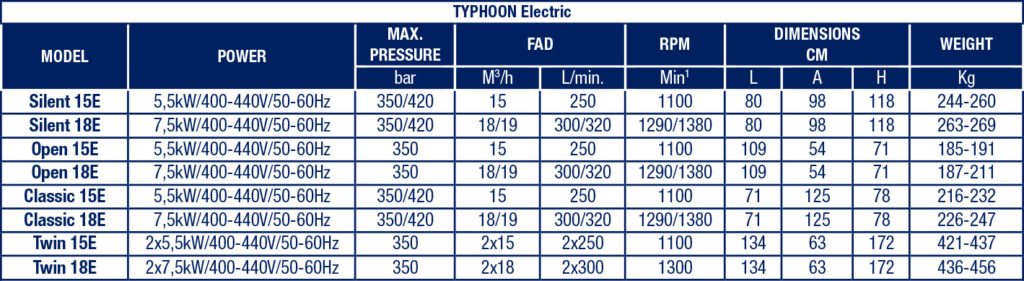

TECNICAL DATA
- Oil capacity: 2.2 lit special synthetic compressor oil.
- Permissible ambient temperature: +50C to +450C
- Noise level: Silent 15E – 69 dB(A) @1m, Silent 18E – 70 dB(A) @1m.
- NEW Economy Versions: Open 13ES, Open 15ES = Manual Stop, Manual Condensate Drains, 1 Filling Hose, Silent 15ES, Silent 18ES = Without digital Controller, With Auto Stop, Auto Condensate Drains, 2 Filling
DESIGN SPECIFICATIONS
| DESIGN SPECIFICATIONS TYPHOON ELECTRIC SERIES | Open/Classic 15E, 18E | Silent 15E, 18E | Twin 15E, 18E | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Star/Delta starter system | ●1 | ●1 | ● | ||||||||||||||||||||||
| Advanced digital controller providing operation (running hrs, filling pressure, operating temperature), control (start/stop/reset/menu button) & service (service hrs-alarm, records of the last 15 malfunctions) data | ■ | ● | ■ | ||||||||||||||||||||||
| Oil pump lubrication | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Start/Stop switch | ● | ■ | ● | ||||||||||||||||||||||
| Motor thermal overload protection | ● | ● | ● | ||||||||||||||||||||||
| Automatic stop system | ● | ● | ● | ||||||||||||||||||||||
| Automatic start system | ◆ | ● | ◆ | ||||||||||||||||||||||
| Automatic condensate drains with manual backups + Condensate collecting tank | ● | ● | ● | ||||||||||||||||||||||
| 24V secondary voltage providing safety during routine operation | ● | ● | ● | ||||||||||||||||||||||
| Emergency Stop button | ● | ● | ● | ||||||||||||||||||||||
| Micronic air inlet filter | ● | ● | ● | ||||||||||||||||||||||
| Pressure maintaining & non return valve for extended filtration | ● | ● | ● | ||||||||||||||||||||||
| Condensate Separator after 2nd Stage | ● | ● | ● | ||||||||||||||||||||||
| Combined BA Filter including Coalescing Pre-filter (0.5 mg/m3 oil residual) and BA cartridge (AC/MS + HP option), with the supply of absolutely clean air exceeding by far the requirements of EN12021 | ●2 | ●2 | ●2 | ||||||||||||||||||||||
| Safety Bleed valve in case of BA Cartridge absence | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Large Stainless Steel Intercoolers – Aftercooler | ● | ● | ● | ||||||||||||||||||||||
| Safety Valves in all stages | ● | ● | ● | ||||||||||||||||||||||
| Interstage pressure sensors providing emergency shutdown in case of overpressure | ◆ | ● | ◆ | ||||||||||||||||||||||
| 2 Kevlar filling hoses (1.2m each) with stainless steel fittings and DIN/INT’L connectors | ● | ● | ■ | ||||||||||||||||||||||
| Lever operated on/off filling valves with automatic ventilation | ◆ | ● | ■ | ||||||||||||||||||||||
| Soundproof insulation ensuring very low noise level | ■ | ● | ■ | ||||||||||||||||||||||
| Dual pressure filling facility, allowing 225/330 bar simultaneous filling via pressure regulator | ◆ | ◆ | ■ | ||||||||||||||||||||||
| Remote Start/Stop – Remote Load/Unload | ◆ | ● | ◆ | ||||||||||||||||||||||
| Interstage/Final stage Manometers | ● | ● | ● | ||||||||||||||||||||||
| Electric hourmeter | ● | ● | ● | ||||||||||||||||||||||
| Vibration hourmeter/service timer (Running hours, BA filter/oil service hours) | ◆ | ■ | ◆ | ||||||||||||||||||||||
| High Temperature monitoring / alarm / shutdown | ◆ | ● | ◆ | ||||||||||||||||||||||
| Low Oil level monitoring / alarm / shutdown | ◆ | ◆ | ● | ||||||||||||||||||||||
| Carbon Monoxide (CO) monitoring / alarm / shutdown system | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Hydrogen Sulfide (H2S) monitoring / alarm / shutdown system | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Humidity (H2O) monitoring / alarm / shutdown system | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Carbon Dioxide (CO2) monitoring / alarm / shutdown system | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| OIL-VOC monitoring / alarm / shutdown system | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Final stage Condensate Separator | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Special Voltage/Frequency: 230V/50Hz-60Hz * 3x230V/60Hz * 460-480V/60Hz | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Voltage failure and Phase Rotation Safety device | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| Automatic belt tensioning system | ● | ● | ● | ||||||||||||||||||||||
| 1.5m air inlet hose with particle strainer | ◆ | ◆ | ◆ | ||||||||||||||||||||||
| ● STANDARD I ◆ OPTIONAL I ■ NOT APPLICABLE | |||||||||||||||||||||||||
| 1* Standard on Typhoon 18 models – option on Typhoon 15 models. | |||||||||||||||||||||||||
| 2* Ø80 x 560 Typhoon 15 models, Ø110 x 495 Typhoon 18 models (option for Typhoon 15 models). Ø110 x 725 Typhoon Twin 15E & 18E. |
OPTIONS
- Automatic Stop (15P, 18P & 15D models)
- Automatic Condensate Drains with manual backups (15P, 18P & 15D models)
- Thermometer/High Temperature alarm
- Low Oil level sensor/alarm
- Lever operated on/off filling valves
- Extra Filling Hose
- Dual pressure filling facility, allowing 225/330 bar filling
High Pressure Compressors
TYPHOON Petrol & Diesel
Why Typhoon Petrol or Diesel
TYPHOON Petrol & Diesel series, 3-staged, air-cooled, high pressure piston compressor, comprising of 3 basic models, Open framed portable, with very low turning speed and pure breathing air according to EN 12021, making it a perfect solution for any breathing air, paintball or industrial application; i.e. fire rescue teams, military units, diving shops, paintball clubs and others
All Typhoon Petrol & Diesel versions provide electric starting system as standard equipment

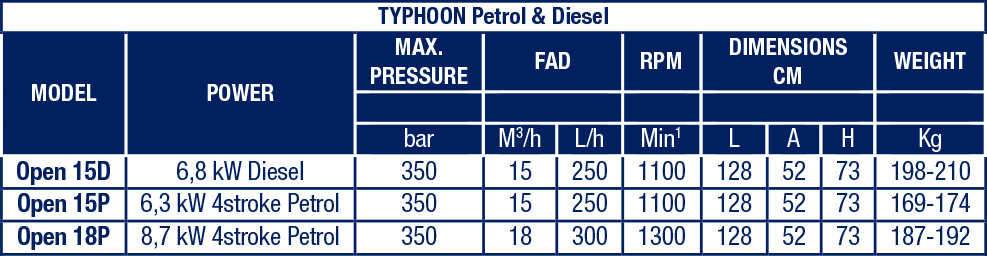

TECHNICAL DATA
- Oil capacity: 2.2 lit special synthetic compressor oil.
- Permissible ambient temperature: +5 ºC to +45 ºC.
DESIGN SPECIFICATIONS
| DESIGN SPECIFICATIONS TYPHOON PETROL & DIESEL SERIES | Open15P, 18P, 15D | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electric Starter/Battery fitted | ● | ||||||||||||||||||||||||
| Oil pump lubrication | ◆ | ||||||||||||||||||||||||
| Automatic stop system | ◆ | ||||||||||||||||||||||||
| Automatic condensate drains with manual backups + Condensate collecting tank | ◆ | ||||||||||||||||||||||||
| Micronic air inlet filter | ● | ||||||||||||||||||||||||
| Pressure maintaining & non return valve for extended filtration | ● | ||||||||||||||||||||||||
| Condensate Separator after 2nd Stage | ● | ||||||||||||||||||||||||
| Combined BA Filter including Coalescing Pre-filter (0.5 mg/m3 oil residual) and BA cartridge (AC/MS + HP option), with the supply of absolutely clean air exceeding by far the requirements of EN12021 | ●1 | ||||||||||||||||||||||||
| Safety Bleed valve in case of BA Cartridge absence | ◆ | ||||||||||||||||||||||||
| Large Stainless Steel Intercoolers – Aftercooler | ● | ||||||||||||||||||||||||
| Safety Valves in all stages | ● | ||||||||||||||||||||||||
| 2 Kevlar filling hoses (1.2m each) with stainless steel fittings and DIN/INT’L connectors | ● | ||||||||||||||||||||||||
| Dual pressure filling facility, allowing 225/330 bar simultaneous filling via pressure regulator | ◆ | ||||||||||||||||||||||||
| Interstage/Final stage Manometers | ● | ||||||||||||||||||||||||
| Vibration hourmeter/service timer (Running hours, BA filter/oil service hours) | ● | ||||||||||||||||||||||||
| High Temperature monitoring / alarm / shutdown system | ◆ | ||||||||||||||||||||||||
| Low Oil level monitoring / alarm / shutdown system | ◆ | ||||||||||||||||||||||||
| Carbon Monoxide (CO) monitoring / alarm / shutdown system | ◆ | ||||||||||||||||||||||||
| Hydrogen Sulfide (H2S) monitoring / alarm / shutdown system | ◆ | ||||||||||||||||||||||||
| Humidity (H2O) monitoring / alarm / shutdown system | ◆ | ||||||||||||||||||||||||
| Carbon Dioxide (CO2) monitoring / alarm / shutdown system | ◆ | ||||||||||||||||||||||||
| OIL-VOC monitoring / alarm / shutdown system | ◆ | ||||||||||||||||||||||||
| Final stage Condensate Separator | ◆ | ||||||||||||||||||||||||
| Automatic belt tensioning system | ● | ||||||||||||||||||||||||
| 1.5m air inlet hose with particle strainer | ● | ||||||||||||||||||||||||
| ● STANDARD I ◆ OPTIONAL I ■ NOT APPLICABLE | |||||||||||||||||||||||||
| 1* Ø80 x 560 Typhoon 15 models, Ø110 x 495 Typhoon 18 models |
OPTIONS
- Automatic Stop (15P, 18P & 15D models)
- Automatic Condensate Drains with manual backups (15P, 18P & 15D models)
- Thermometer/High Temperature alarm
- Low Oil level sensor/alarm
- Lever operated on/off filling valves
- Extra Filling Hose
- Dual pressure filling facility, allowing 225/330 bar filling
High Pressure Compressors
TYPHOON Tropical
Why Typhoon Tropical
Typhoon Tropical series, 3-staged/air-cooled/high pressure piston compressor, ensuring safe operation and pure breathing air quality acc. to EN 12021 directive, even in contaminated environment via CO, H2S, H2O monitoring and alarm.
- Heavy Duty Design. • Extreme Operating Conditions.
All Typhoon Tropical models are designed for high ambient temperatures (50o C) & increased humidity environment

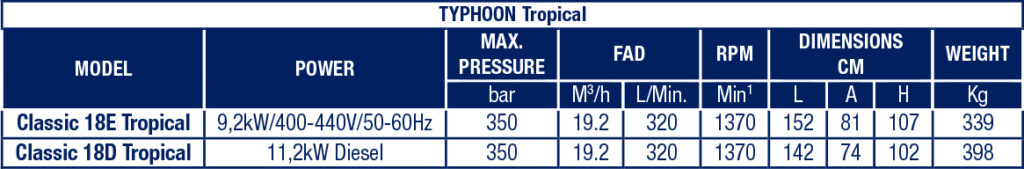

TECHNICAL DATA
- Oil capacity: 2.3 lit special synthetic compressor oil.
- Permissible ambient temperature: +5 ºC to +50 ºC.
DESIGN SPECIFICATIONS
| DESIGN SPECIFICATIONS TYPHOON TROPICAL SERIES | Classic 18E Tropical | Classic 18D Tropical | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Star/Delta starter system | ● | ■ | |||||||||||||||||||||||
| Electric Starter/Battery fitted | ■ | ● | |||||||||||||||||||||||
| Advanced digital controller providing operation (running hrs, filling pressure, operating temperature), control (start/stop/reset/menu button) & service (service hrs-alarm, records of the last 15 malfunctions) data | ◆ | ■ | |||||||||||||||||||||||
| Oil pump lubrication | ◆ | ◆ | |||||||||||||||||||||||
| Lifting eyebolts for easier transportation | ● | ● | |||||||||||||||||||||||
| Galvanized & powder Coated frame and covers | ● | ● | |||||||||||||||||||||||
| Electric Hourmeter | ● | ■ | |||||||||||||||||||||||
| Vibration hourmeter/service timer (Running hours, BA filter/oil service hours) | ◆ | ● | |||||||||||||||||||||||
| Voltage Failure & Phase Rotation Safety Device | ● | ■ | |||||||||||||||||||||||
| Start/Stop switch | ● | ● | |||||||||||||||||||||||
| Motor thermal overload protection | ● | ■ | |||||||||||||||||||||||
| Automatic stop system | ● | ● | |||||||||||||||||||||||
| Automatic start system | ◆ | ■ | |||||||||||||||||||||||
| Automatic condensate drains with manual backups | ● | ● | |||||||||||||||||||||||
| 24V secondary voltage providing safety during routine operation | ● | ■ | |||||||||||||||||||||||
| Emergency Stop button | ● | ■ | |||||||||||||||||||||||
| Micronic air inlet filter | ● | ● | |||||||||||||||||||||||
| Pressure maintaining & non return valve for extended filtration | ● | ● | |||||||||||||||||||||||
| Condensate Separators in all stages | ● | ● | |||||||||||||||||||||||
| Combined BA Filter including Coalescing Pre-filter (0.5 mg/m3 oil residual) and BA cartridge (AC/MS + HP option), with the supply of absolutely clean air exceeding by far the requirements of EN12021 | ● | ● | |||||||||||||||||||||||
| Safety Bleed valve in case of BA Cartridge absence | ◆ | ◆ | |||||||||||||||||||||||
| Large Stainless Steel Intercoolers – Aftercooler | ● | ● | |||||||||||||||||||||||
| Safety Valves in all stages | ● | ● | |||||||||||||||||||||||
| Interstage pressure sensors providing emergency shutdown in case of overpressure | ◆ | ■ | |||||||||||||||||||||||
| 2 Kevlar filling hoses (1.2m each) with stainless steel fittings and DIN/INT’L connectors | ● | ● | |||||||||||||||||||||||
| Lever operated on/off filling valves with automatic ventilation | ● | ● | |||||||||||||||||||||||
| Dual pressure filling facility, allowing 225/330 bar simultaneous filling via pressure regulator | ◆ | ◆ | |||||||||||||||||||||||
| Remote Start/Stop – Remote Load/Unload | ◆ | ■ | |||||||||||||||||||||||
| Interstage/Final stage Manometers | ● | ● | |||||||||||||||||||||||
| High Temperature monitoring / alarm / shutdown | ● | ● | |||||||||||||||||||||||
| Low Oil level monitoring / alarm / shutdown | ● | ● | |||||||||||||||||||||||
| Carbon Monoxide (CO) monitoring / alarm / shutdown system | ◆ | ◆ | |||||||||||||||||||||||
| Hydrogen Sulfide (H2S) monitoring / alarm / shutdown system | ◆ | ◆ | |||||||||||||||||||||||
| Humidity (H2O) monitoring / alarm / shutdown system | ◆ | ◆ | |||||||||||||||||||||||
| Carbon Dioxide (CO2) monitoring / alarm / shutdown system | ◆ | ◆ | |||||||||||||||||||||||
| OIL-VOC monitoring / alarm / shutdown system | ◆ | ◆ | |||||||||||||||||||||||
| Condensate collecting tank | ● | ● | |||||||||||||||||||||||
| Special Voltage/Frequency: 230V/50Hz-60Hz * 3x230V/60Hz * 460-480V/60Hz | ◆ | ■ | |||||||||||||||||||||||
| Automatic belt tensioning system | ● | ● | |||||||||||||||||||||||
| 1.5m air inlet hose with particle strainer | ◆ | ● | |||||||||||||||||||||||
| ● STANDARD I ◆ OPTIONAL I ■ NOT APPLICABLE |
OPTIONS
- Interstage Manometers
- Low Oil level sensor/alarm
- Extra Filling Hose
- Dual pressure filling facility, allowing 225/330 bar filling
- Remote Start/Stop – Remote Load/Unload
